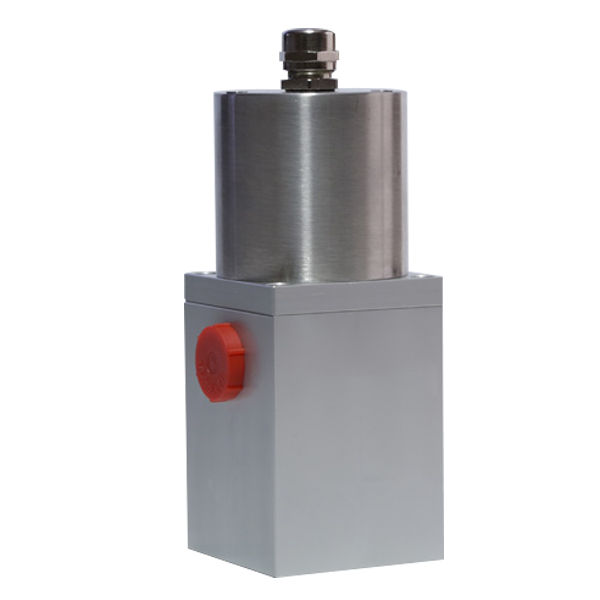

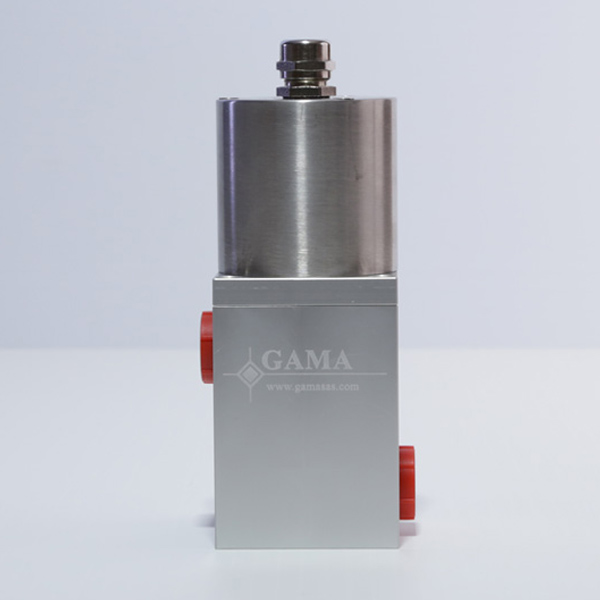

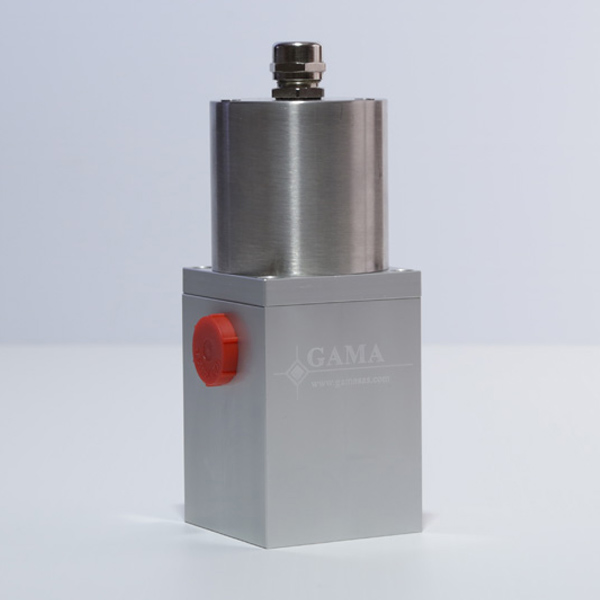

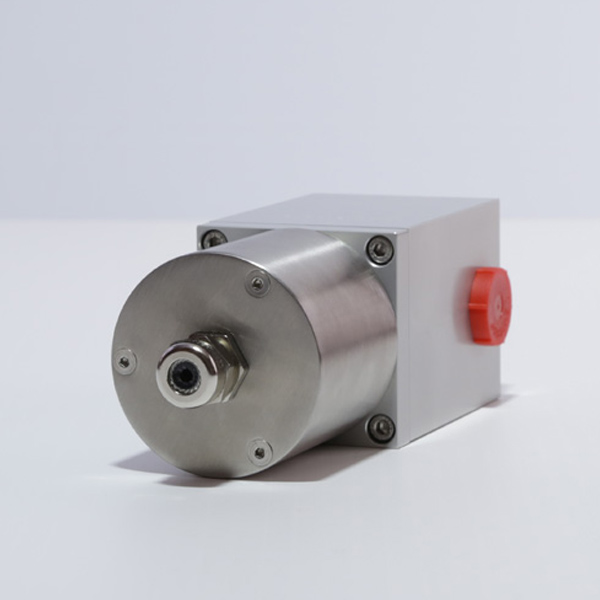

The G20 is a microprocessor controller for the regulation of the viscosity of solvent based ink. The viscosity measurement is made through a vibration sensor inline with the ink piping without moving parts.
This sensor emits a frequency to the controller that processes the viscosity in seconds (cup ZAHN, FORD etc.) and, then to the solvent valve, which maintains the value according to the reference signal.
The cleaning of the viscometer is made at job end, while washing up.
Rotogravure and Flexographic presses. Solvent based ink and varnish.
Console and command screen
HMI 4,3” – 9,7” touchscreen display. All colours displayed on the screen. All viscosities are displayed on a graphic bar. Individual cup settings to desired reference. Save up to 50 different jobs. Temperature control function displayed. Error signals (no ink, no water or viscosity over tolerance).
Rack system cabled by connectors. Installed in a cabinet. Serial communication between HMI and control.
G20-RIV to install in a danger zone near the ink tank. Solvent correction through pneumatic valve. Feeding by rotary or alternative pumps. Viscosity accuracy is measured within 1%.
Control temperature by G90 heat exchanger. PC 15” touchscreen display. Magnetic filter G70.
Maintance and cleaning
At the end of the job, the cleaning of sensors is made simultaneously with the press ink cleaning system. No mechanical parts or moving components.
This documentation is not contractual information. Specifications are subject to modification without notice.
